EASY ROOF EVOLUTION,
The most reliable in roof mounting system
for all energy modules on the market.
0
installations per year
0
compatible modules
0
distributor countries
EASY ROOF EVOLUTION, universal in roof mounting solution, certified by MCS012
The concept
EASY ROOF EVOLUTION is a revolutionary ventilated in roof mounting system for photovoltaic, thermal, aerothermal and hybrid modules.
Thanks to an ingenious patented interlocking process, the various parts of the EASY ROOF EVOLUTION fits perfectly together, without cutting, into each other.

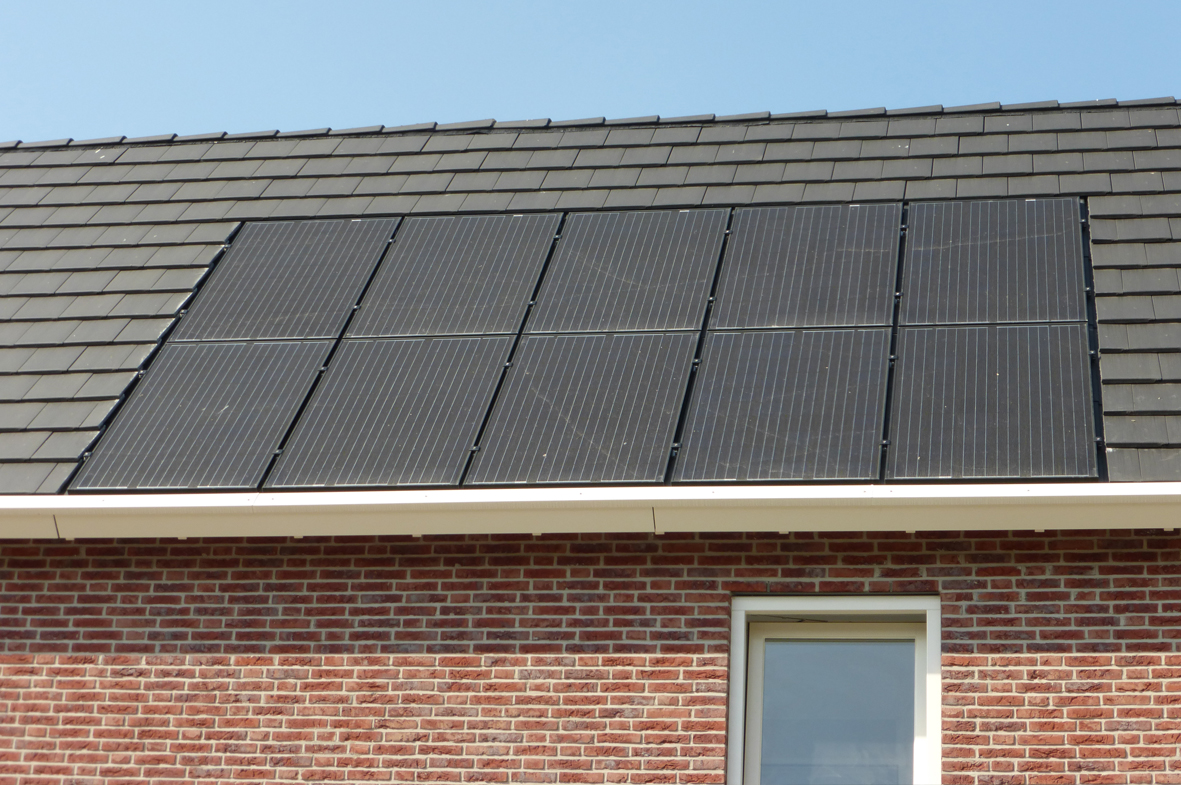

Compatible with all kind of roof (tiles, slates …)
Mounting EASY ROOF EVOLUTION (Tile)
Mounting EASY ROOF EVOLUTION (Shingle)

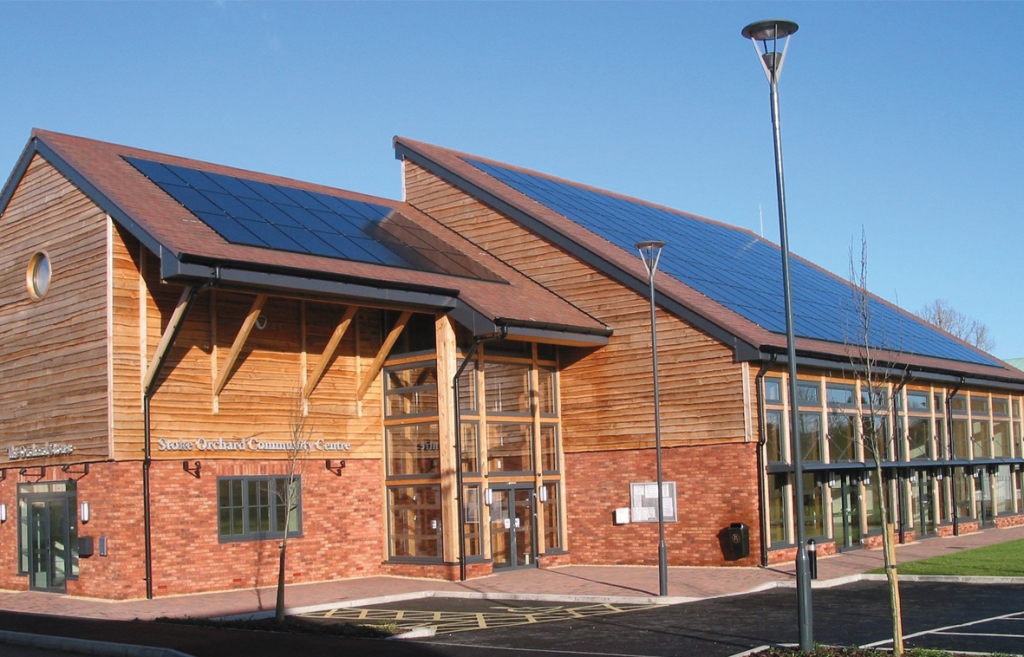

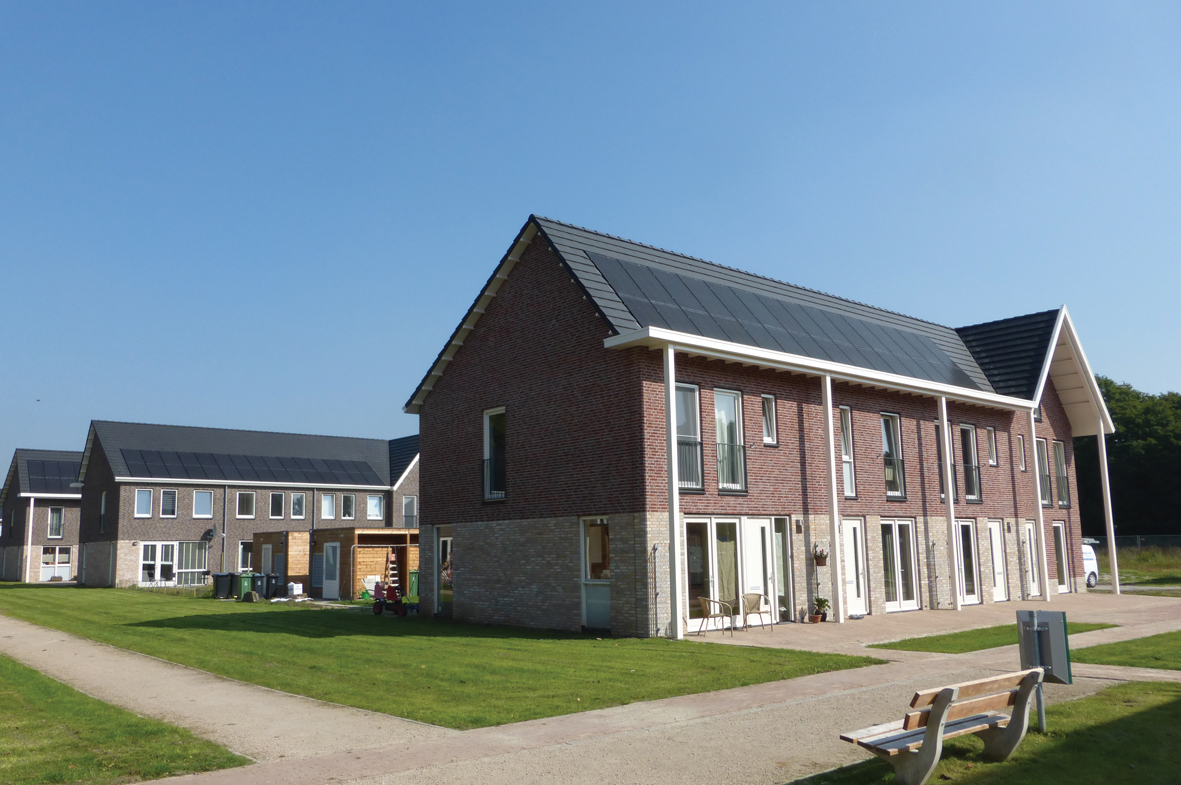

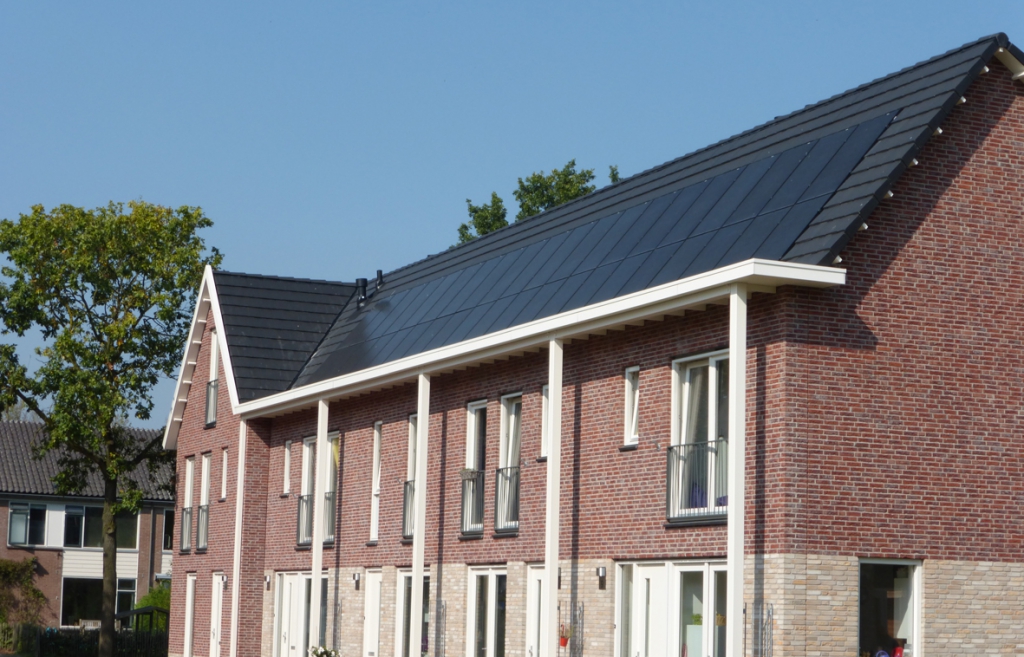

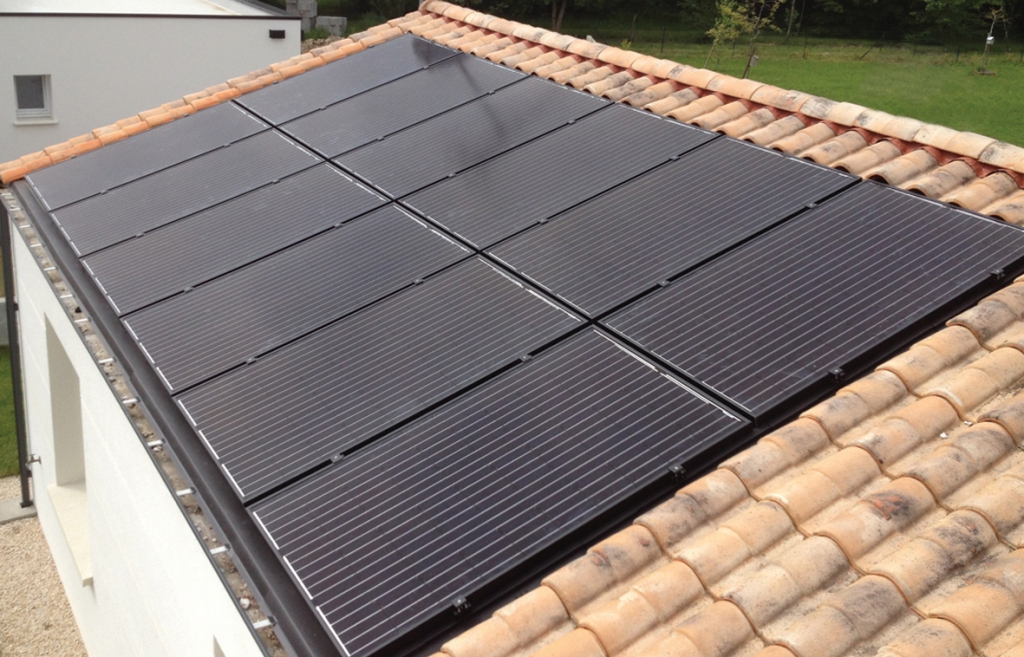

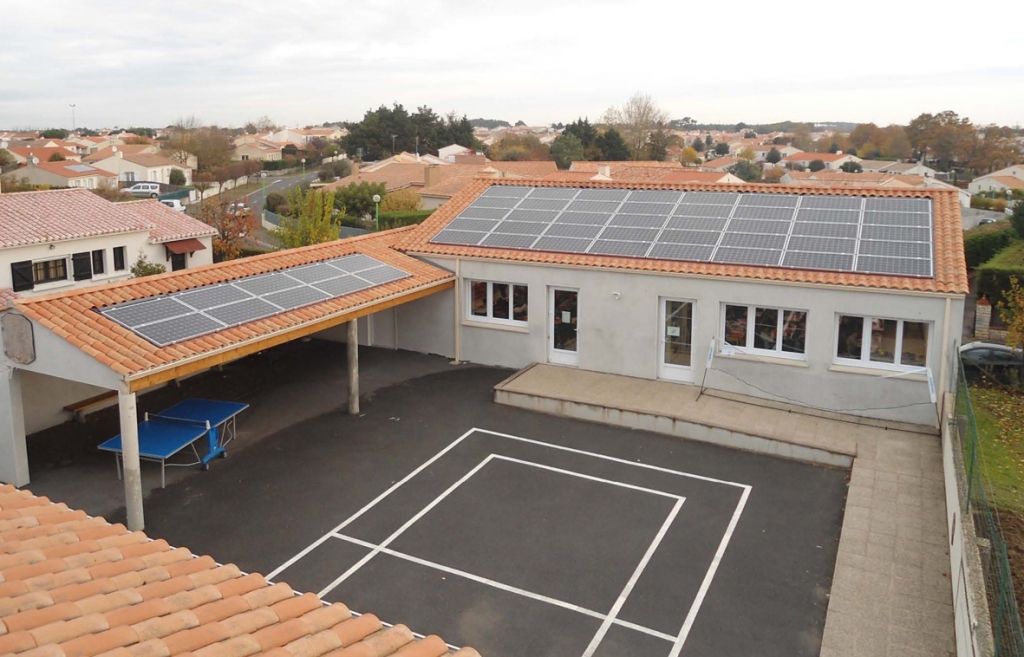

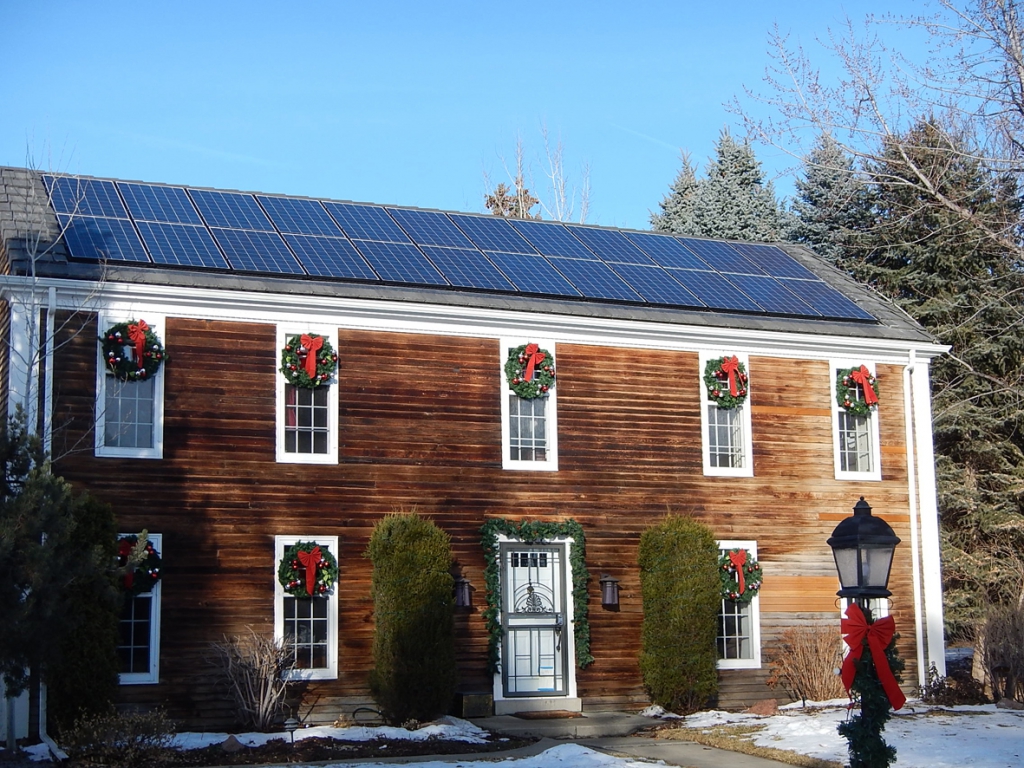

Residential, commercial, industrial and public buildings, farms.
I recently had the EASY ROOF EVOLUTION in roof system installed at my home. The system is simple and quick to install. We have experienced heavy rain over the last few months, but there are no visible leaks to the underside of the roof felt and therefore the system appears to be 100% water tight. Living on the edge of a Conservation Area, the look of the final installation was of key importance to me. The Easy Roof System enables the pv trays to sit in profile with the roof tiles and therefore reduces their appearance to a considerable degree. I am very happy with the overall result and would certainly recommend.
Advantages
Fully adjustable
- “Single frame” solution for adjustable assemblies to several MW,
- Each module can be replaced or removed separately,
- Installation formats: portrait, pyramid or free (contour of window …),
Possible integration at the edge of the roof,

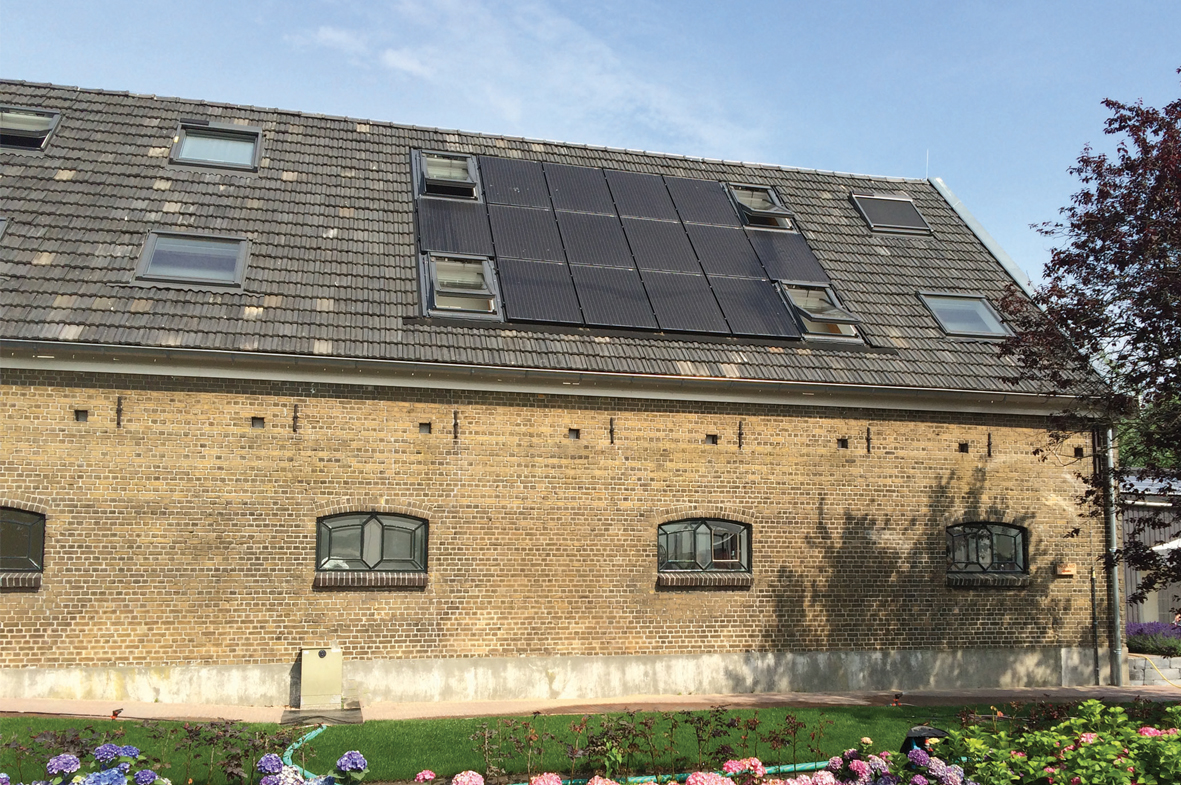

- Compatible with the EASY ROOF solution for VELUX® (MK06 et MK08) roof window
Really fast to install
100 % RECLYCLABLE MATERIAL
System reliability
- Installation without sealing,
- Fits all roofs, even distorted, with slopes from 10° to 50°,
- UV, hail, rust, heat, snow and wind resistant (valid for zone 4: snow and wind according to NV-65 and Eurocode standards),
- Vents under each module: optimised energy efficiency.
Certification & Guarantee
- Avis Technique N°21/14-48 V6
- New Technical Investigation certification approving the process | ETN
- 10 year manufacturer warranty
Aesthetic solutions

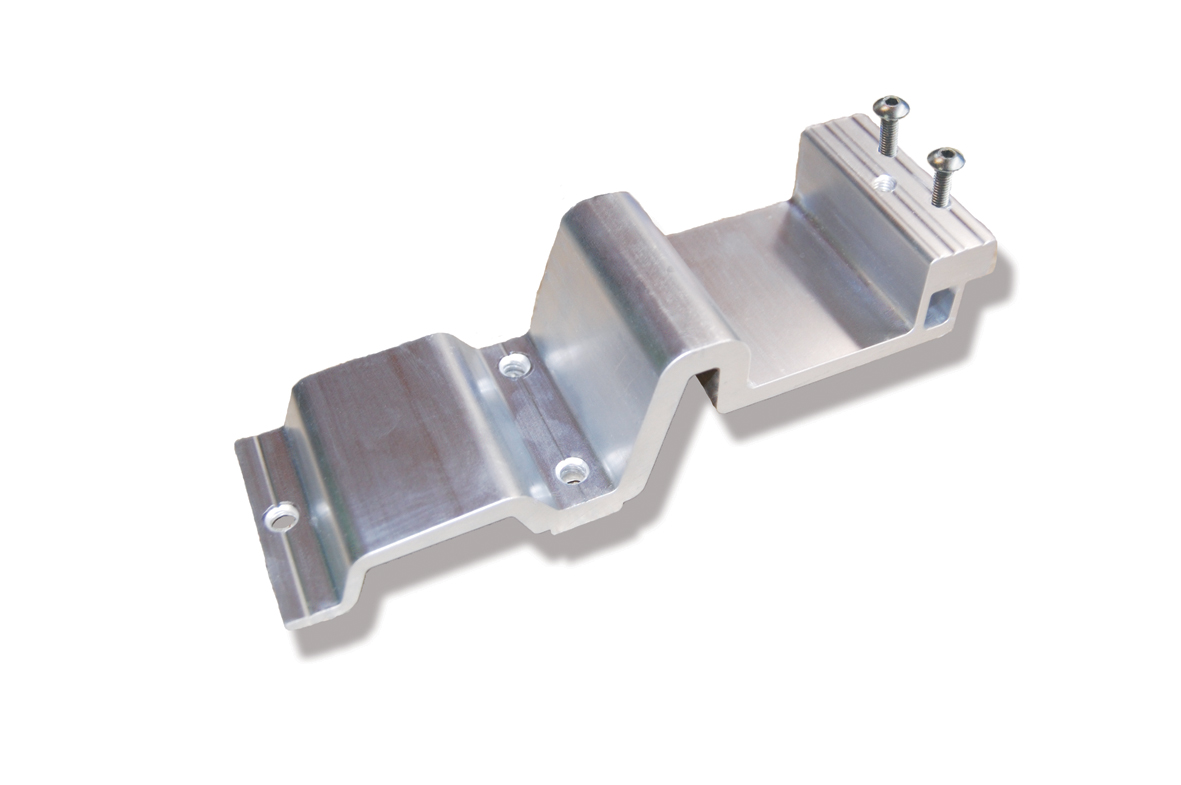

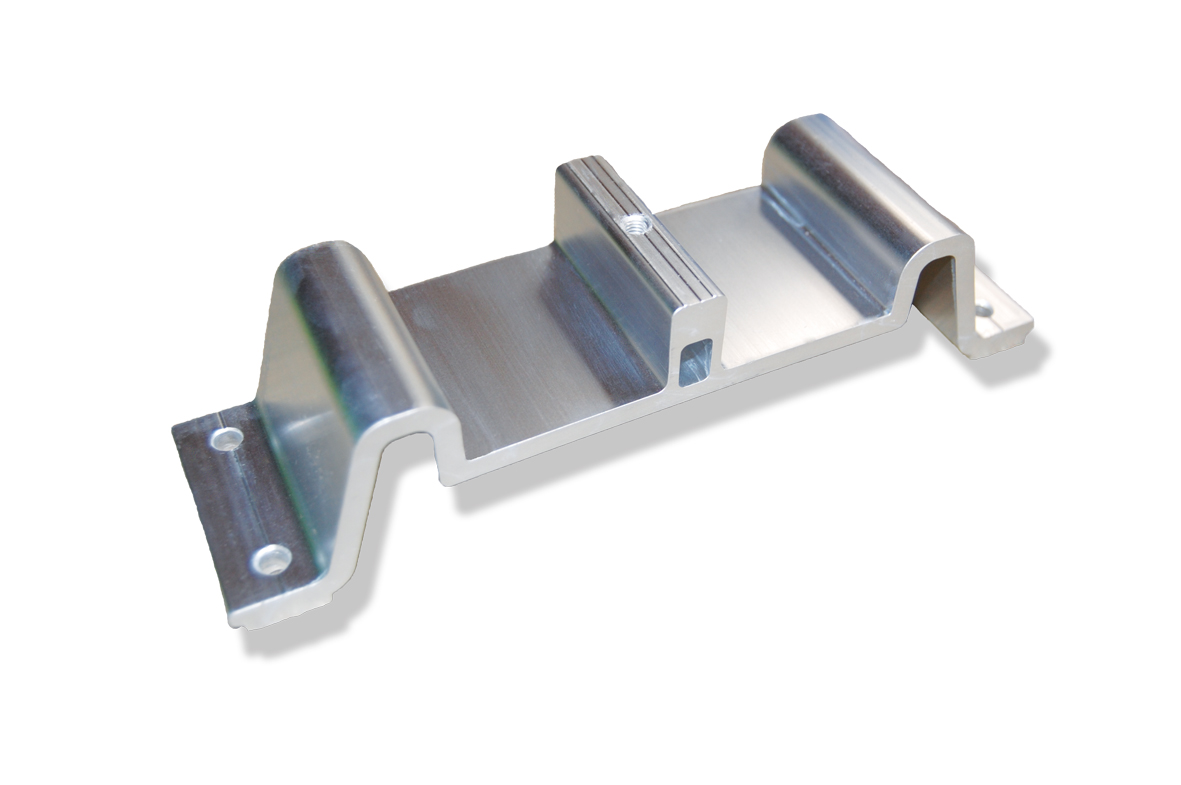

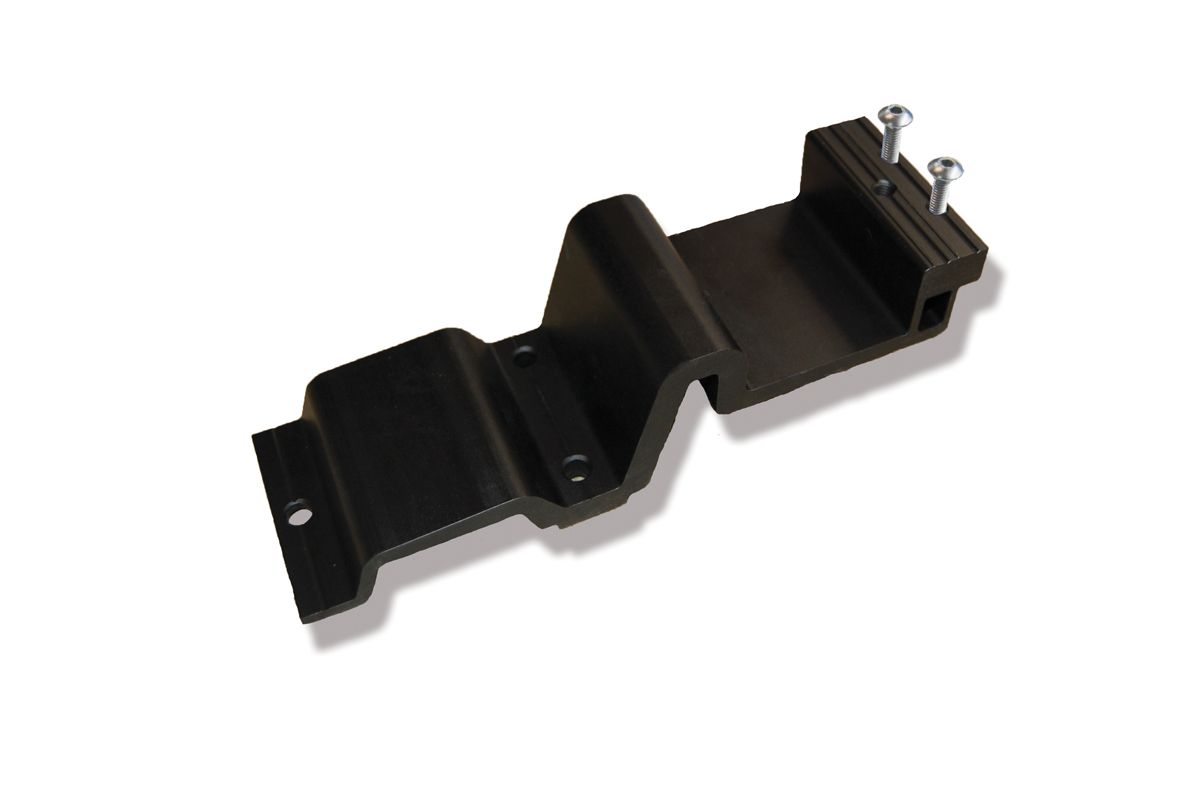

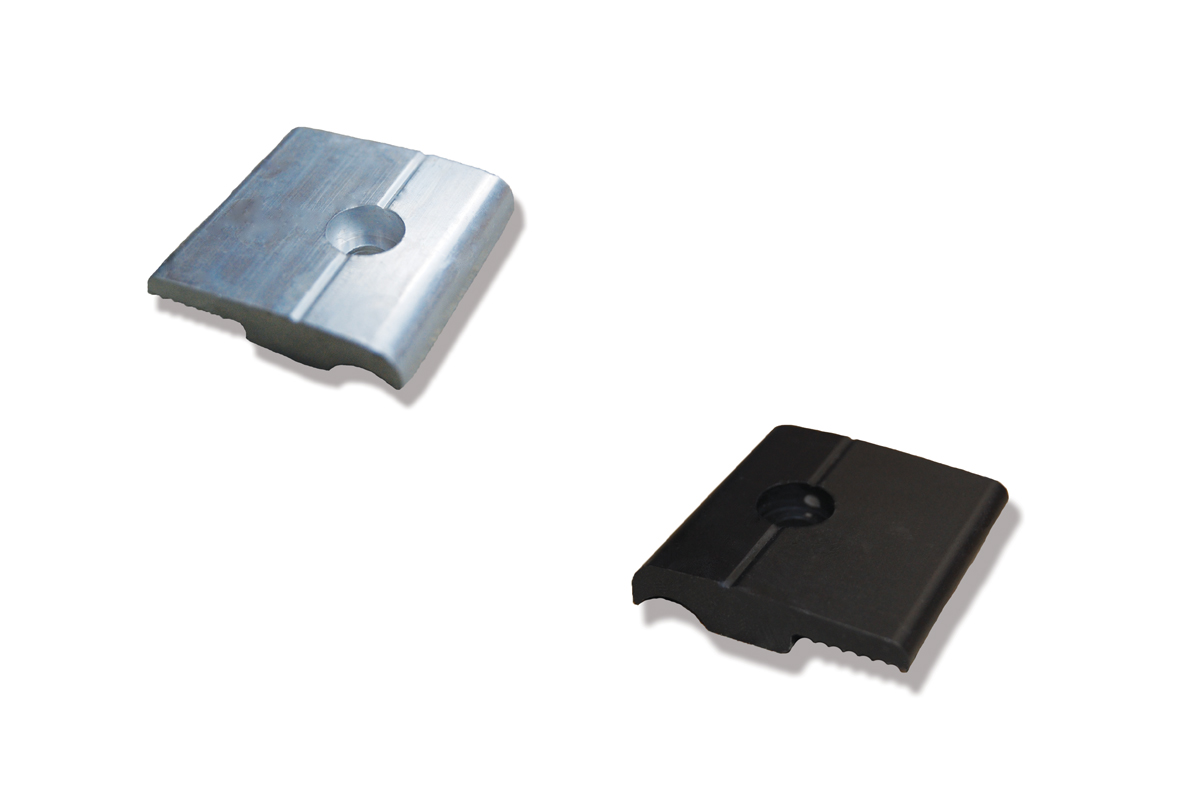

EASY ROOF EVOLUTION solutions are available in black and aluminum finish (brackets and clamps)

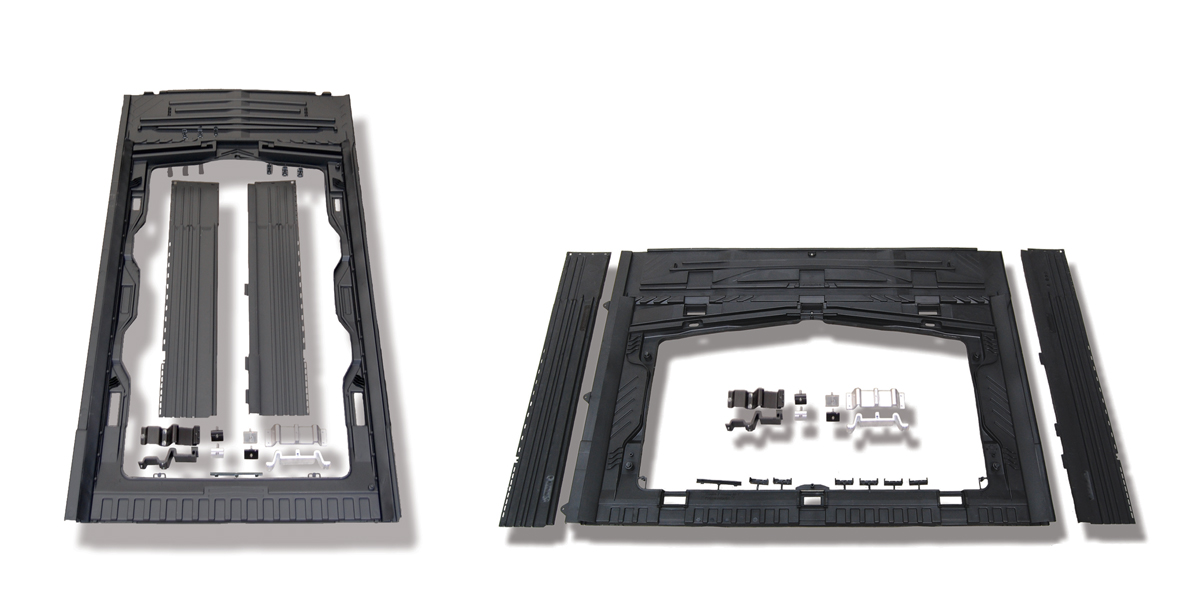

Available in Portrait and Landscape
Modules dimensions : (L*w*h)
- L-1: PORTRAIT / 1638-1705 * 982-1002 * 30-50
- M-1: LANDSCAPE / 1638-1692 * 982-1002 * 30-50
- P-1: PORTRAIT / 1661-1730 * 1002-1023 * 30-50
- O-1: PORTRAIT / 1535-1559 * 1027-1046 * 30-50
Easy to install and time server
- Installation without any cutting needed,
- Top flashing integrated,
- Fixing clamp with a single screw and anti-rotation EASY ROOF technology,
- Speed of mounting : 3kW with 2 fitters installed in 6 hours whatever the PV field.
Storage and easy to carry

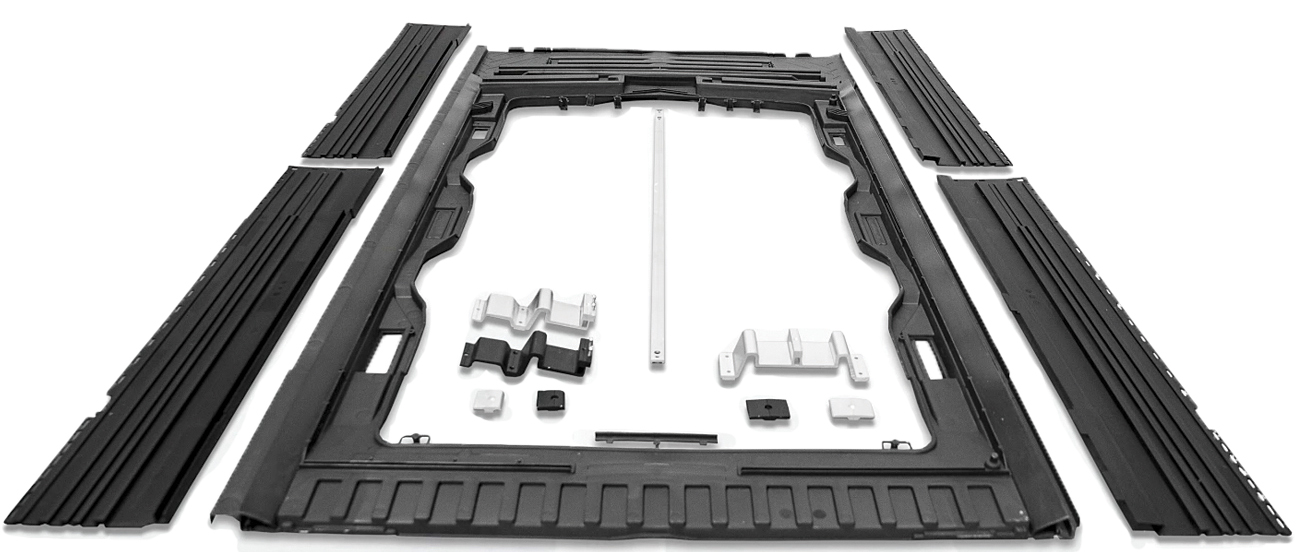

- Common parts in Portrait and Landscape lay-out (except frame),
- Weight (2.5 kg) and not bulky.
Design your project
