EASY ROOF TOP,
On-roof mounting system for photovoltaic module
The concept

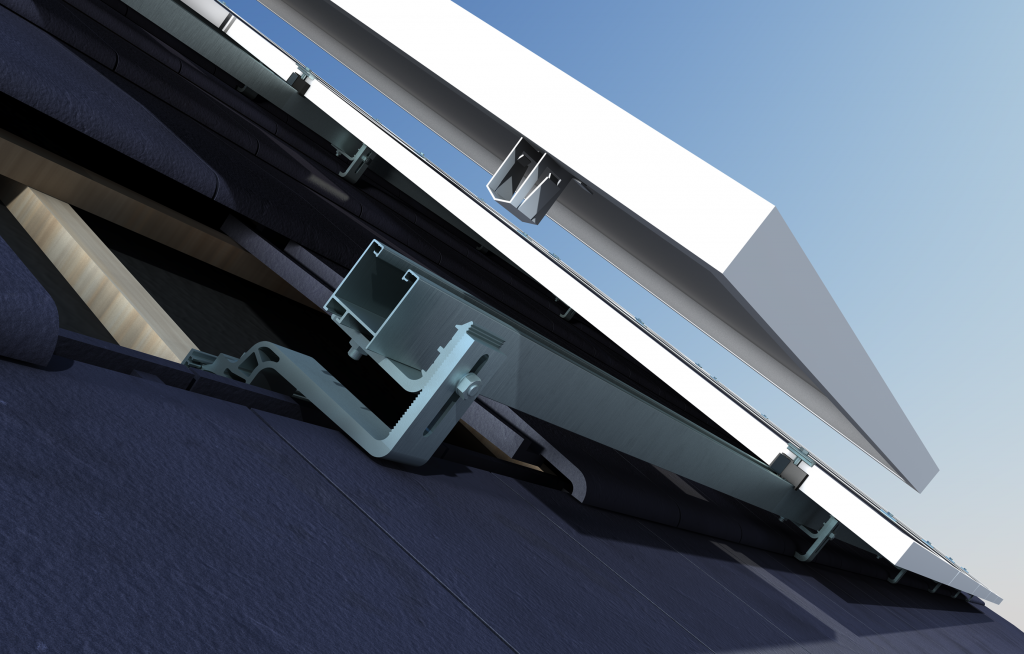

EASY ROOF TOP is an on-roof mounting solution for all framed photovoltaic modules(1).
The system can be installed onto any existing roof tiles, slate tile, roof plate and sinusoidal sheets in PORTRAIT and LANDSCAPE. Our solution is designed for slopes between 8° and 50°(2), depending on the roofing.

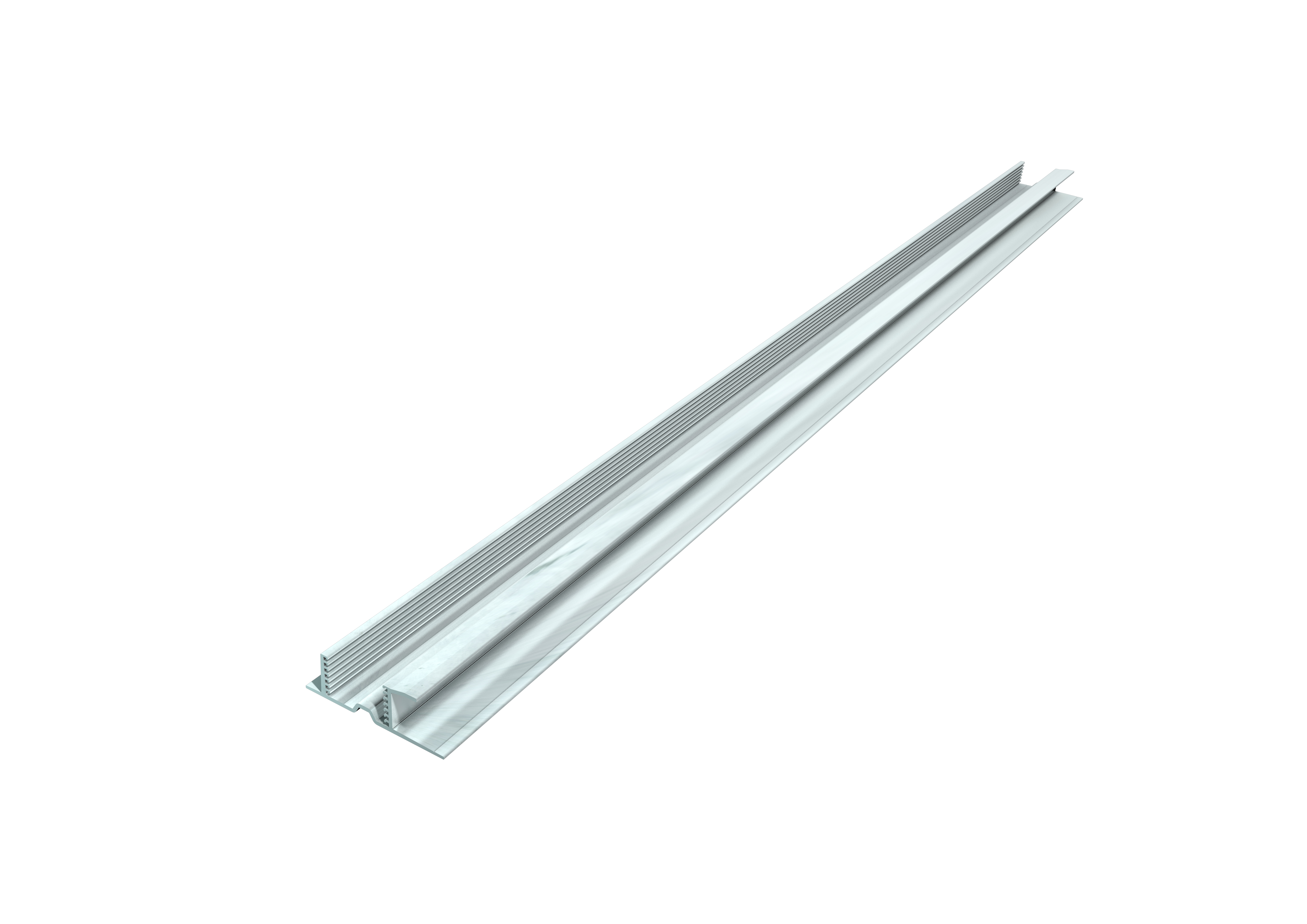

Thanks to its specific LANDSCAPE base plate, EASY ROOF TOP requires only one rail orientation for installation, which will save you valuable time.
The uniquely designed EASY ROOF TOP system has a new hooking mechanism which fits directly into the building structure. This can be installed with one simple twist onto all types of curved or flat tiles.A dedicated hook for slate roof and another one for sinusoidal sheets are also available.
Roofs compatibilities
Roman tile
Interlocking tile
Mechanical flat tile
Slate tile
Sinusoidal sheets
Components that adapt to your building sites

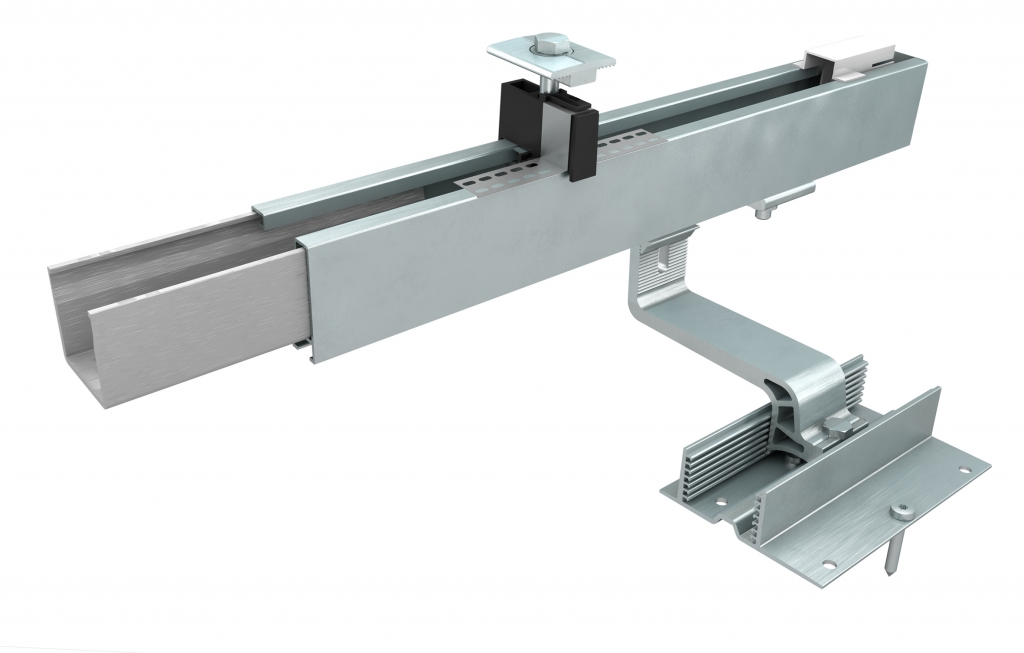

Roof anchorage elements

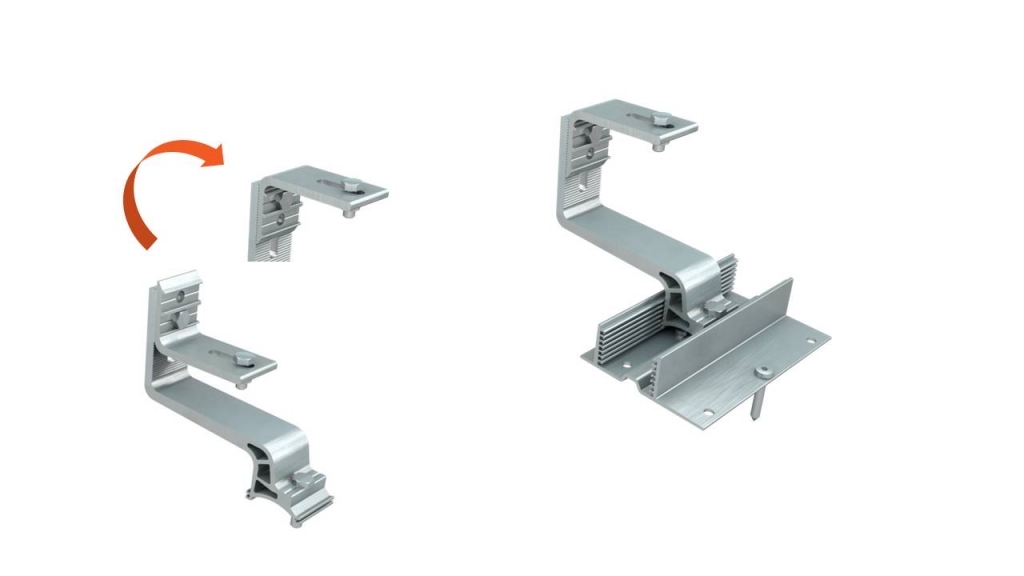

Several anchor points for easy positioning on rafters. One hight adjustable hooking mechanism.

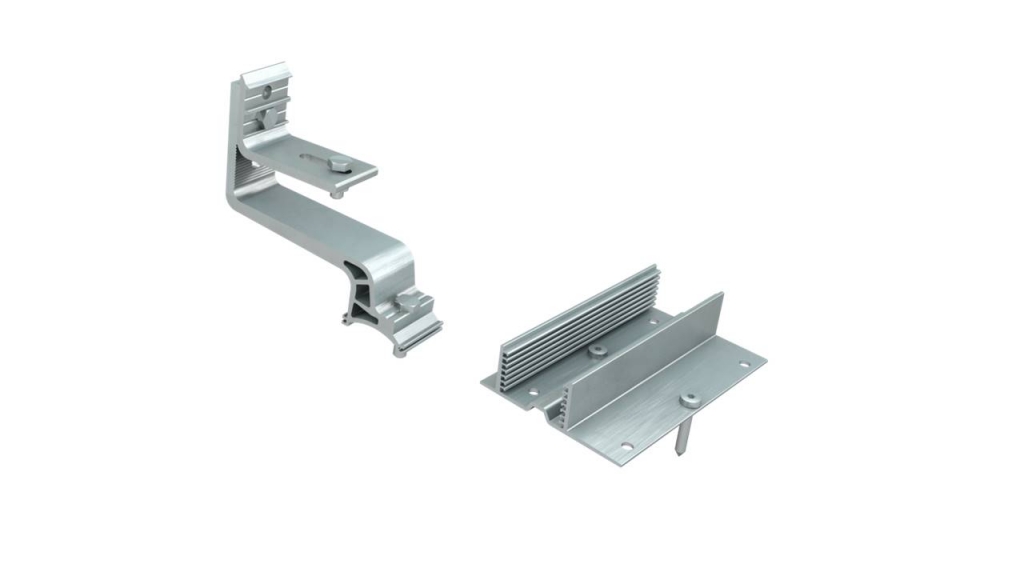

In a LANDSCAPE installation, a single rail orientation is enough thanks to the dedicated LANDSCAPE base.
.
A single hook for all tiles and a perfect fit of the field flatness.

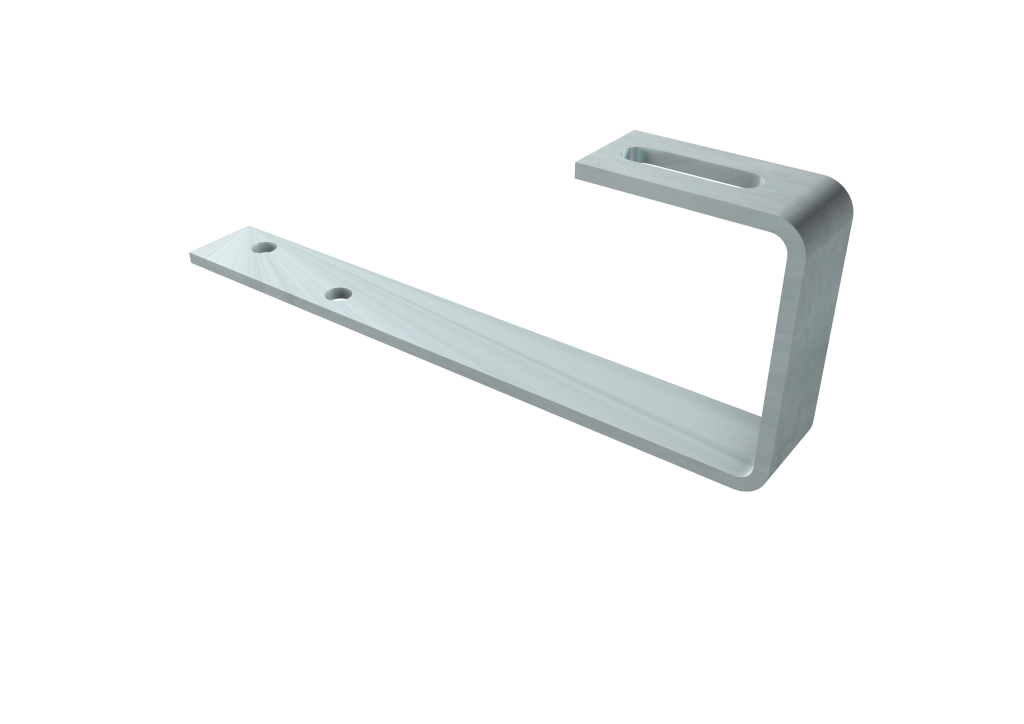

Slate hook
sinusoidal sheets fixing
Fastenings elements
Double fixing assembly supplied ready assembled with ground solution EASY GROUNDING (option)

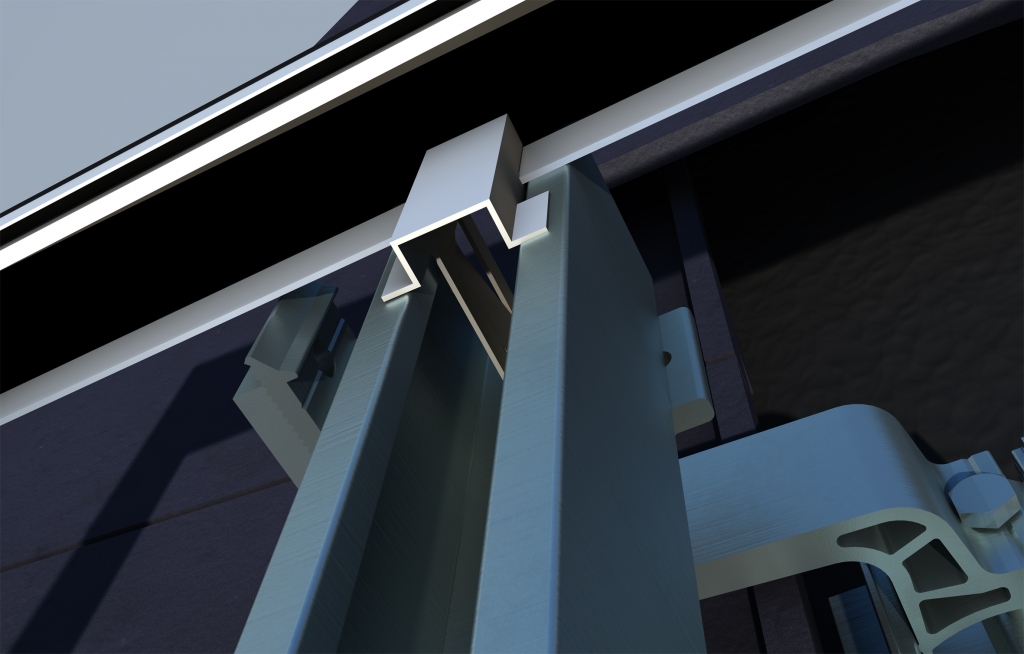

Module clip
Installation of the clip in the back profile length side … …
… then into the rail.
Guarantee
- Design tool - IRFTS MySolarProject
- 10 year manufacturer warranty
Aesthetic solutions
Available in black and aluminium finishes.
- No rail and no fixings visible below the photovoltaic field.
- Available in portrait and landscape
Mounting elements: aluminium alloy. Mounting screws: stainless steel.
Design your project
(1) Compatibility list. (2) Subject to the roof structure.
